Do a great job: Aseptic filling machines, inspection systems and more

Bottelpack machines drive the success of our Blow-Fill-Seal technology, ensuring efficient and accurate shaping of your products, whether it be an ampoule, bottle, or canister. Each machine is customized to meet your specific needs. However, we never compromise when it comes to quality. You can count on that!

Our goal is your advantage

fertigungstiefe

High vertical range of manufacture

We produce every part with Swiss precision and German engineering for the highest quality, reliability and long service life.

transparenz-1

Certified production processes

Every bottelpack machine meets the strict requirements of pharmaceutical industry - worldwide: Abrasp, Anvisa, EMA, FDA.

abstimmung

Perfect tuning and integration

We design all bottelpack machines to meet the respective challenges and integrate them into your production line - or plan the entire BFS environment for you right away.

services

Comprehensive services

From training to maintenance and modernization, we are also there for you after commissioning your machine with the best service.

qualitaet

Tested quality

Because every detail counts, we maintain our own laboratory testing and production facilities for testing. Our quality management system is ISO 9001:2015 certified.

Show more

Engineering that gets you ahead

5 good reasons for our plants
large-slider-product-img1

From the inventor of BFS technology

We have been continuously optimizing since the first bottelpack prototype in 1960. We are now the global market leader, offering highly efficient aseptic filling machines, a wealth of experience and a unique range of services.

ROM_ILL_Kokarde_icon_website_1500x810px_v1.22

Highest efficiency

bottelpack machines combine cost-efficient production with high production output.

ROM_ILL_Tachometer_icon_website_1500x810px_v1.22

Economical use of energy and materials

We optimize our bottelpack machines to operate as efficiently and economically as possible. Our sustainability principle also includes the use of regranulates.

Regranulate

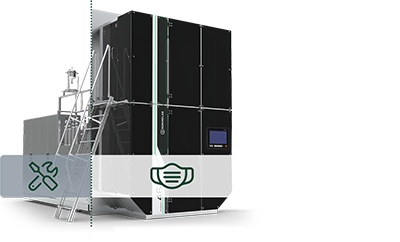

Modular, compact design

We separate our facilities into grey (technical) and white zones (clean room) for maximum safety and cleanliness. In addition, we design them to save space.

bp460-zonierung

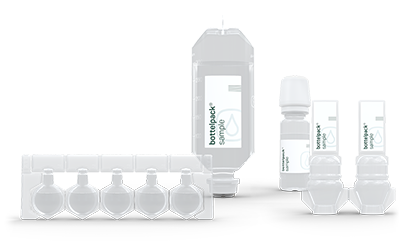

Exact dosage

Thanks to the precise individual metering of each cavity, exactly as much liquid or semi-solid as previously defined enters the container.

exakte-dosierung

Tailored to you: our bottelpack systems

Click through our portfolio of aseptic filling machines or use the filter.

By primary packaging:

By filling volume in ml:
0.1
2000

Or application:

Machine CTA
Request advice
Shape
FAF ROM 312M still 3840x2160 221019 (1)
bp 312M

1.100 – 4.500 Pcs./h

bp 312M to open
FAF ROM 321 still 3840x2160 221004
bp 321

600 – 3.300 Pcs./h

bp 321 to open
FAF ROM 321M still 3840x2160 221004 (1)
bp 321M

3.000 – 9.000 Pcs./h

bp 321M to open
FAF ROM 324 still 3840x2160 221125
bp 324

800 – 4.000 Pcs./h

bp 324 to open
FAF ROM 324M still 3840x2160 221125
bp 324M

4.800 – 12.000 Pcs./h

bp 324M to open
FAF ROM 360 still 3840x2160 221125 (1)
bp 360

1.200 – 6.600 Pcs./h

bp 360 to open
FAF ROM 360 still 3840x2160 221125
bp 360M

6.000 – 18.000 Pcs./h

bp 360M to open
FAF ROM 364 still 3840x2160 221206
bp 364

1.800 – 9.200 Pcs./h

bp 364 to open
FAF ROM 434 still 3840x2160 221019
bp 434

4.500 – 11.250 Pcs./h

bp 434 to open
FAF ROM 460neo still 3840x2160 221125
bp 460-15

10.000 – 29.000 Pcs./h

bp 460-15 to open
FAF ROM 460neo still 3840x2160 221125
bp 460-20

11.250 – 33.300 Pcs./h

bp 460-20 to open
FAF ROM 461 still 3840x2160 221125
bp 461

8.000 – 25.000 Pcs./h

bp 461 to open

Better than any filter: personal exchange

.

Currently, no system seems to fit your filter settings. Whether it only needs a small change or a special solution is best found out together.

Request advice
no-result-placholder-img
Close Close
Shape
FAF ROM 312M still 3840x2160 221019 (1)
Data sheet

bp 312M

Number of cavities:
4–15
Container:
Ampoules
Filling volume:
0,1–60 ml
Power:
1.100 – 4.500 Pcs./h
Category:
Opthalmic Products , Inhalers , Injectables , Vaccines , Cosmetics , Other
System footprint:
3.000 x 1.700 x 2.800 (LxWxH in mm)
Recommended room size:
6.000 x 5.000 x 3.500 (LxWxH in mm)
Close Close
Shape

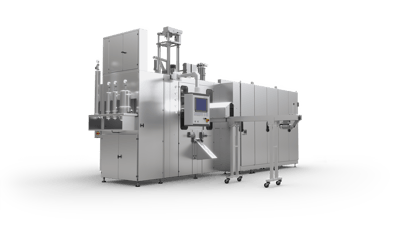

FAF ROM 321 still 3840x2160 221004
start video Data sheet

bp 321

Number of cavities:
3–12
Container:
Bottles
Filling volume:
50–2.000 ml
Power:
600 – 3.300 Pcs./h
Category:
Contact Lens Solution , Inhalers , Infusions , Enteral Solutions , Electrolyte and Drinking Solutions , Wound Irrigation Solutions , Other
System footprint:
3.000 x 1.700 x 2.800 (LxWxH in mm)
Recommended room size:
6.000 x 5.000 x 3.500 (LxWxH in mm)
Close Close
Shape

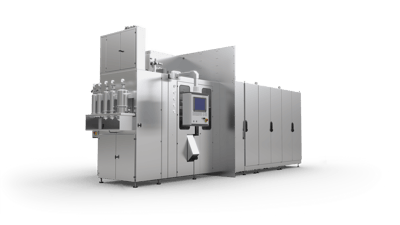

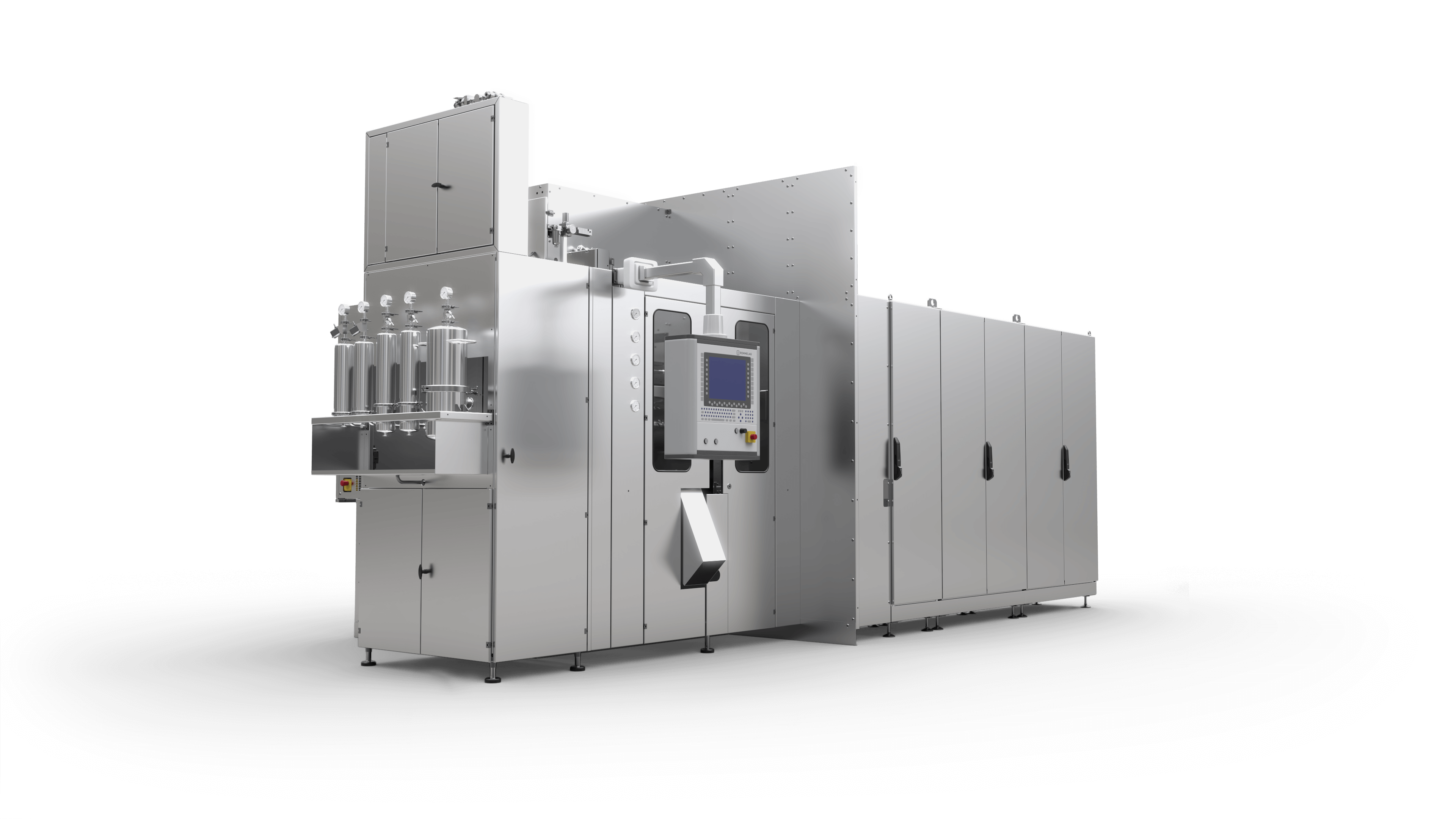

FAF ROM 321M still 3840x2160 221004 (1)
start video Data sheet

bp 321M

Number of cavities:
10–30
Container:
Ampoules
Filling volume:
0,1–50 ml
Power:
3.000 – 9.000 Pcs./h
Category:
Opthalmic Products , Inhalers , Injectables , Vaccines , Cosmetics , Other
System footprint:
3.000 x 1.700 x 2.800 (LxWxH in mm)
Recommended room size:
6.000 x 5.000 x 3.500 (LxWxH in mm)
Close Close
Shape

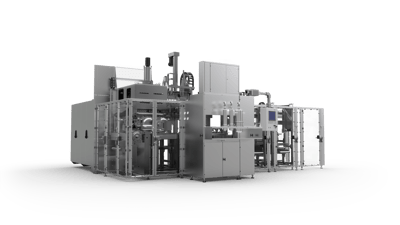

FAF ROM 324 still 3840x2160 221125
Data sheet

bp 324

Number of cavities:
4–16
Container:
Bottles
Filling volume:
50–2.000 ml
Power:
800 – 4.000 Pcs./h
Category:
Contact Lens Solution , Inhalers , Infusions , Enteral Solutions , Oral Solutions , Electrolyte and Drinking Solutions , Wound Irrigation Solutions , Other
System footprint:
7.400 x 6.500 x 3.800 (LxWxH in mm)
Recommended room size:
10.500 x 9.500 x 4.500 (LxWxH in mm)
Close Close
Shape
FAF ROM 324M still 3840x2160 221125
Data sheet

bp 324M

Number of cavities:
16–40
Container:
Ampoules
Filling volume:
0,1–40 ml
Power:
4.800 – 12.000 Pcs./h
Category:
Opthalmic Products , Inhalers , Injectables , Vaccines , Cosmetics , Other
System footprint:
6.600 x 7.400 x 3.900 (LxWxH in mm)
Recommended room size:
9.500 x 11.000 x 4.500 (LxWxH in mm)
Close Close
Shape

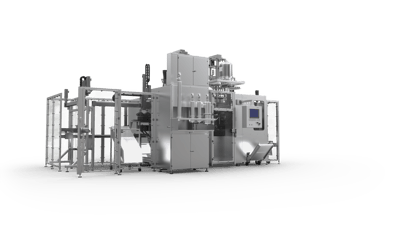

FAF ROM 360 still 3840x2160 221125 (1)
Data sheet

bp 360

Number of cavities:
6–24
Container:
Bottles
Filling volume:
50–2.000 ml
Power:
1.200 – 6.600 Pcs./h
Category:
Contact Lens Solution , Inhalers , Infusions , Enteral Solutions , Oral Solutions , Electrolyte and Drinking Solutions , Wound Irrigation Solutions , Other
System footprint:
6.100 x 4.500 x 3.900 (LxWxH in mm)
Recommended room size:
10.000 x 7.600 x 4.500 (LxWxH in mm)
Close Close
Shape
FAF ROM 360 still 3840x2160 221125
Data sheet

bp 360M

Number of cavities:
20–60
Container:
Ampoules
Filling volume:
0,1–50 ml
Power:
6.000 – 18.000 Pcs./h
Category:
Opthalmic Products , Inhalers , Injectables , Vaccines , Cosmetics , Other
System footprint:
6.100 x 5.000 x 3.200 (LxWxH in mm)
Recommended room size:
9.500 x 7.600 x 3.500 (LxWxH in mm)
Close Close
Shape

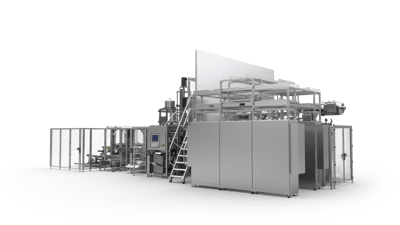

FAF ROM 364 still 3840x2160 221206
start video Data sheet

bp 364

Number of cavities:
4–14
Container:
Bottles
Filling volume:
50–2.000 ml
Power:
1.800 – 9.200 Pcs./h
Category:
Contact Lens Solution , Inhalers , Infusions , Enteral Solutions , Oral Solutions , Electrolyte and Drinking Solutions , Wound Irrigation Solutions , Other
System footprint:
13.000 x 6.600 x 4.500 (LxWxH in mm)
Recommended room size:
16.000 x 10.000 x 6.000 (LxWxH in mm)
Close Close
Shape

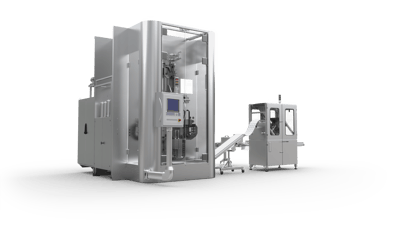

FAF ROM 434 still 3840x2160 221019
start video Data sheet

bp 434

Number of cavities:
10–25
Container:
Ampoules
Filling volume:
0,1–30 ml
Power:
4.500 – 11.250 Pcs./h
Category:
Opthalmic Products , Inhalers , Injectables , Vaccines , Cosmetics , Other
System footprint:
4.600 x 2.300 x 3.600 (LxWxH in mm)
Recommended room size:
6.500 x 6.000 x 4.000 (LxWxH in mm)
Close Close
Shape

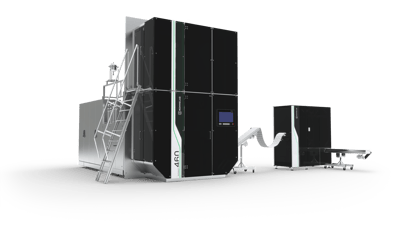

FAF ROM 460neo still 3840x2160 221125
start video Data sheet

bp 460-15

Number of cavities:
10–25
Container:
Ampoules
Filling volume:
0,2–30 ml
Power:
10.000 – 29.000 Pcs./h
Category:
Opthalmic Products , Inhalers , Injectables , Vaccines , Cosmetics , Other
System footprint:
5.000 x 2.900 x 4.300 (LxWxH in mm)
Recommended room size:
7.500 x 6.000 x 5.000 (LxWxH in mm)
Close Close
Shape
FAF ROM 460neo still 3840x2160 221125
start video Data sheet

bp 460-20

Number of cavities:
10–25
Container:
Ampoules
Filling volume:
0,2–8 ml
Power:
11.250 – 33.300 Pcs./h
Category:
Opthalmic Products , Inhalers , Injectables , Vaccines , Cosmetics , Other
System footprint:
5.000 x 2.900 x 4.300 (LxWxH in mm)
Recommended room size:
7.500 x 6.000 x 5.000 (LxWxH in mm)
Close Close
Shape

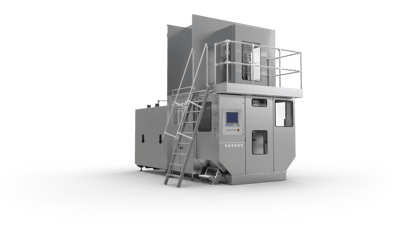

FAF ROM 461 still 3840x2160 221125
Data sheet

bp 461

Number of cavities:
8–25
Container:
Ampoules
Filling volume:
3–60 ml
Power:
8.000 – 25.000 Pcs./h
Category:
Opthalmic Products , Inhalers , Injectables , Vaccines , Cosmetics , Other
System footprint:
5.200 x 2.900 x 4.300 (LxWxH in mm)
Recommended room size:
9.400 x 6.500 x 4.500 (LxWxH in mm)
Close
Close
Close
Close
Close
Close

Strengthens your value creation: Digitization with RPP

Faster and better decisions in the manufacturing process, comprehensive logging, and real-time monitoring are possible with RPP, the Rommelag Pharma Platform. Through secure "one-way" networking of the bottelpack filling machine with your production facility, your control centre, and our service and maintenance team: For more flexible access to information and expandability through software modules.

Shape
Shape

Big challenges?

Major challenges? Solve them quickly: with digitized Blow-Fill-Seal processes. Roll the film!

Ready for Pharma 4.0

RPP gives you access to a detailed information model and guarantees comprehensive data usage options. At the same time, third-party tools can be easily integrated. To this end, the system relies on four vital digital components: OPC UA digital integration, intelligent operation, risk-free remote support and interactive maintenance.

digitale-integration-1

A clear advantage with RPP

Request advice
CDMO
chargenkontrolle

Automated batch control and archiving

Based on industrial standards for plant communication protocols, RPP connects the bottelpack machine to your MES and plant database.

daten

Real time data

Monitor overall equipment effectiveness (OEE), identify production bottlenecks and generate configurable reports.

diagnose

Sound diagnosis and fast problem solving

Via a "one-way" cloud connection, you have secure access to asset health records and remote maintenance. Thanks to live snapshots, our service can help you immediately.

wartung

Timely maintenance

Detailed runtime information allows you to schedule maintenance and avoid downtime. Our virtual catalogue supports them with technical information and compatible spare parts.

Show more
Request advice
CDMO
Shape
Shape
Digitization
shape
kontakt-asiatin-mobil-1
top-shape-mobile-no-corner

A solution for every requirement. Promise!

Are you convinced of our BFS technology, but the time is not suitable for a new acquisition? No problem: As a one-stop partner with comprehensive services, we offer you strong alternatives.

Contract filling Used machines
bottom-shape3-green

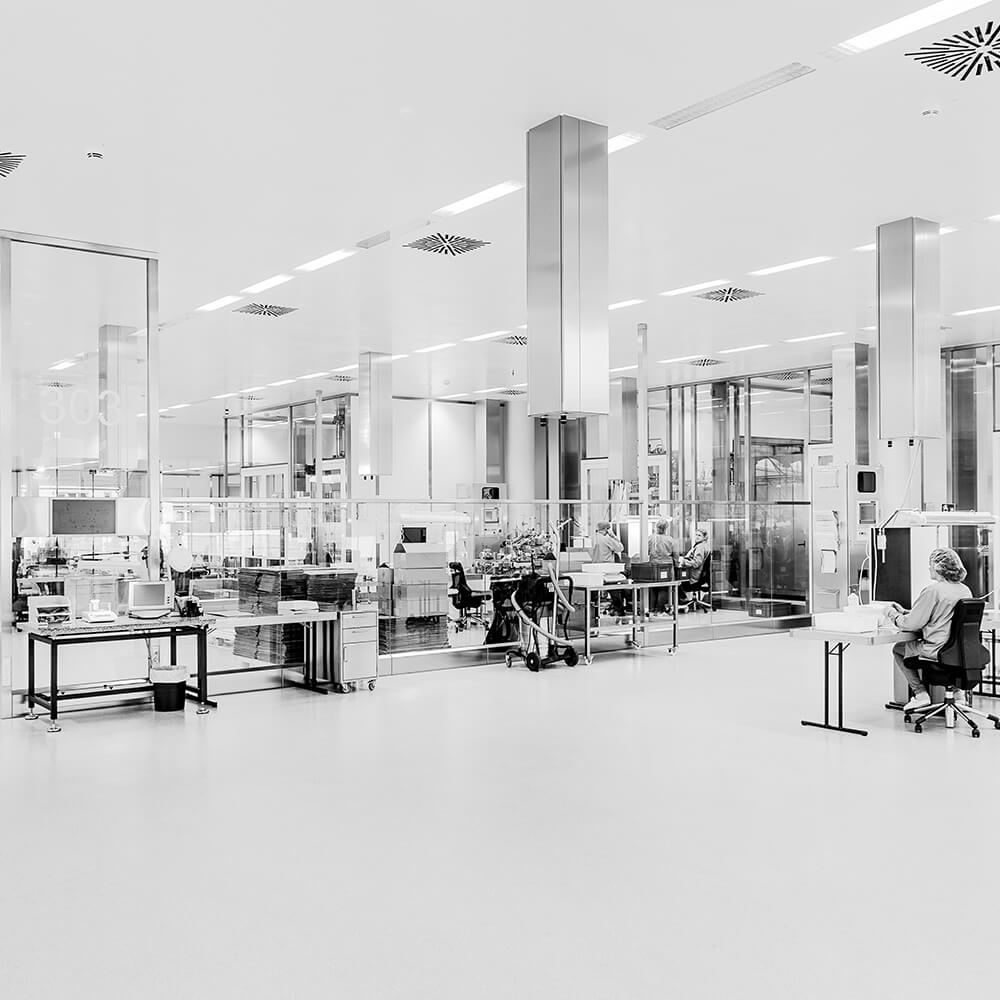

Gives you space: Filling in the pharmaceutical suite

We are committed to helping our customers in any way we can. Our Pharma Suite provides an exceptional solution - we can host your bottelpack machine and operate it for you, especially if you lack space or manpower.

Contact us
pharma-suite

The best for last: Cap welding and inspection equipment

We provide the ideal extensions for our bottelpack machines to ensure maximum safety and efficiency. Our inspection systems and cap welding lines are seamlessly integrated into your manufacturing process or delivered as a standalone solution, whichever suits your production needs."

Shape
Shape

Connecting: Cap welding machine (SM)

Our specially developed cap welding system lets you quickly and easily add plastic caps (closures) to finished BFS containers. Whether semi-automatic or fully automatic, both variants feature automatic unloading machines and conveyor belt systems.

SM

Everything in view: Cosmetic Inspection Machine (CIM)

Cosmetic defects, such as discolouration of the BFS packaging or poor legibility of engravings, are reliably detected by our automated visual inspection technology in a non-destructive manner. For this purpose, the modular system is equipped with one or more camera systems operating in parallel. Faulty containers are automatically rejected, and measurement reports are generated quickly and thoroughly. So you have not only one hundred per cent control but also a qualifiable and validatable test system.

See CIM in action
Close
CIM

Preventive: High voltage test facility (HVLD)

The High Voltage Leak Detector enables partial, non-destructive and fully automatic leak testing inline. Depending on the shape, design and product conductivity, it can handle up to 5,000 containers or ampoule blocks per hour. Leaky containers are ejected directly. This relaxes production and quality assurance.

hvld
Shape
Shape
bottelpack machines extensions
shape

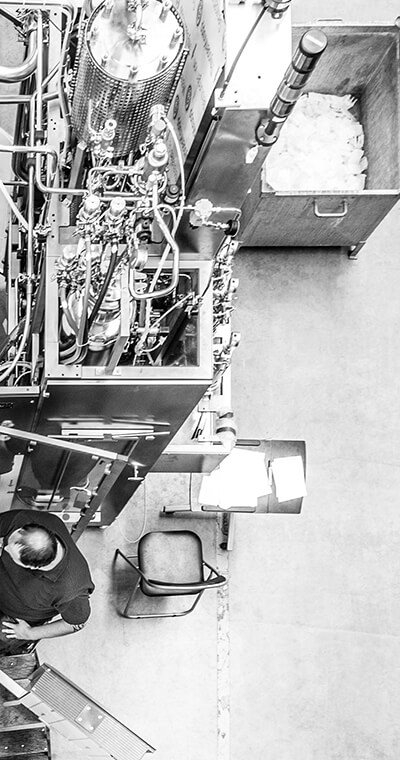

one-stop-partner-contentlink-mobil
top-shape

One or all? We are your one-stop partner!

Thanks to our wide range, we can always help you. From the appropriate equipment to planning your complete Blow-Fill-Seal environment, including all structures and processes. And if you want to go into production immediately, our contract filling department looks forward to your request. Convince yourself:
