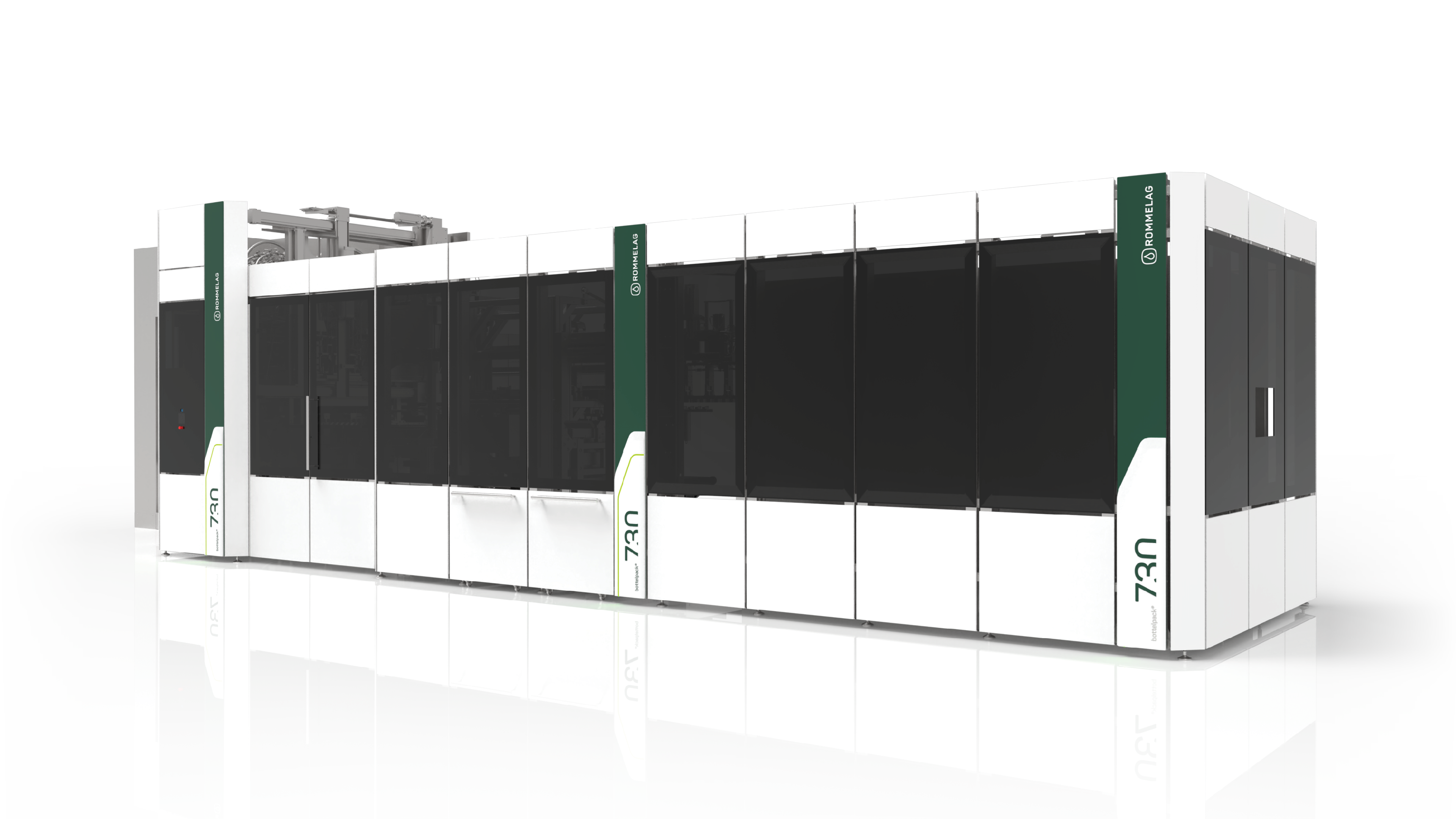

bottelpack bp 730, exterior view

Bottle filling machines

bp 700 Series

Blow-Fill-Seal (BFS) for large-volume parenterals (LVP): the bottelpack 700 Series forms, fills and seals bottles from 100 to 1,000 ml.

Output

Output by filling volume

Bottles per hour on the three configurations of the bp 700 Series. A bp 730 can be upgraded to a bp 750 later.

1,000 ml
bp 710 · 1,400 bottles/h
bp 730 · 2,600 bottles/h
bp 750 · 4,500 bottles/h
500 ml
bp 710 · 1,600 bottles/h
bp 730 · 2,800 bottles/h
bp 750 · 5,600 bottles/h
250 ml
bp 710 · 1,700 bottles/h
bp 730 · 3,000 bottles/h
bp 750 · 6,000 bottles/h
100 ml
bp 710 · 1,800 bottles/h
bp 730 · 3,200 bottles/h
bp 750 · 6,400 bottles/h
bp 710, coming soonbp 730bp 750, coming soon

Technical data of the bp 700 Series are preliminary and subject to change.

Advantages

Built to lower the total cost of ownership

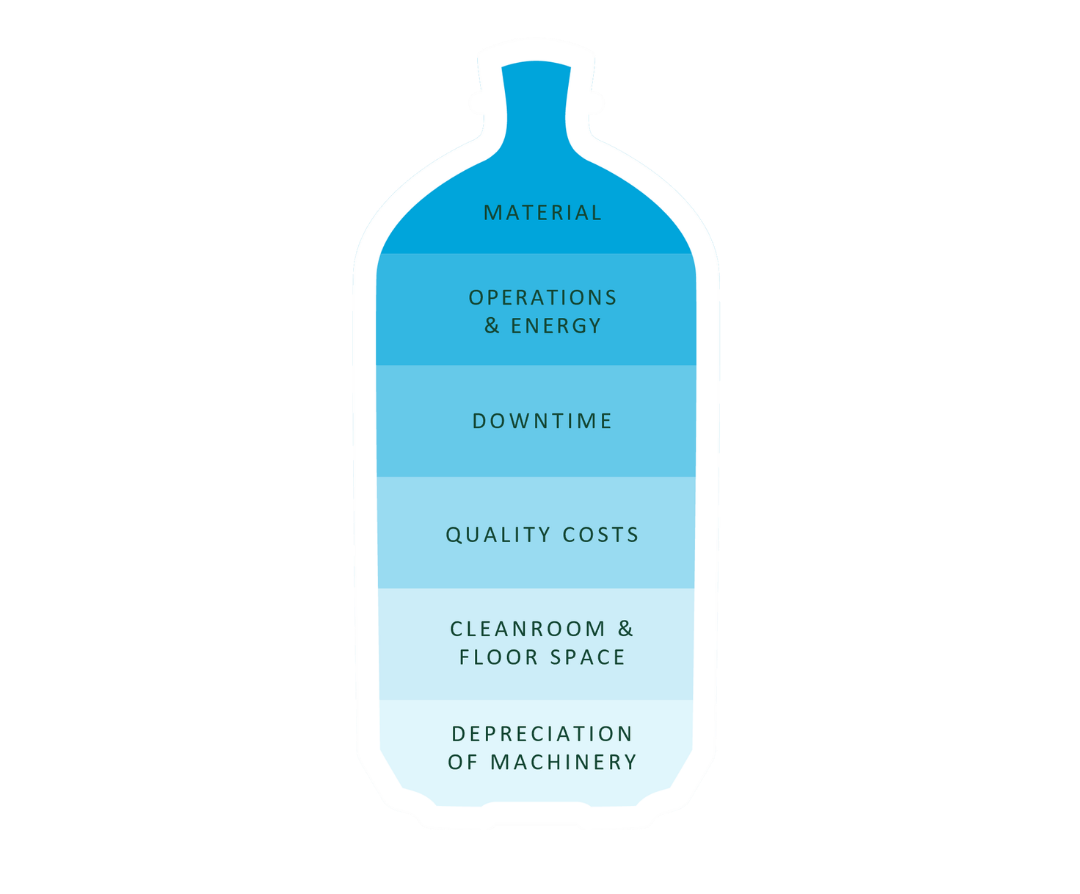

In LVP production, the machine itself accounts for only 15% of the unit cost. The bp 700 Series was developed from a blank sheet to reduce the other 85%.

Minimized downtime

Simpler changeovers, cleaning and maintenance recover production time.

More production time

Example calculation for a bp 730

about

330h

additional production hours per year

around

1 million

additional bottles per year, without adding a machine

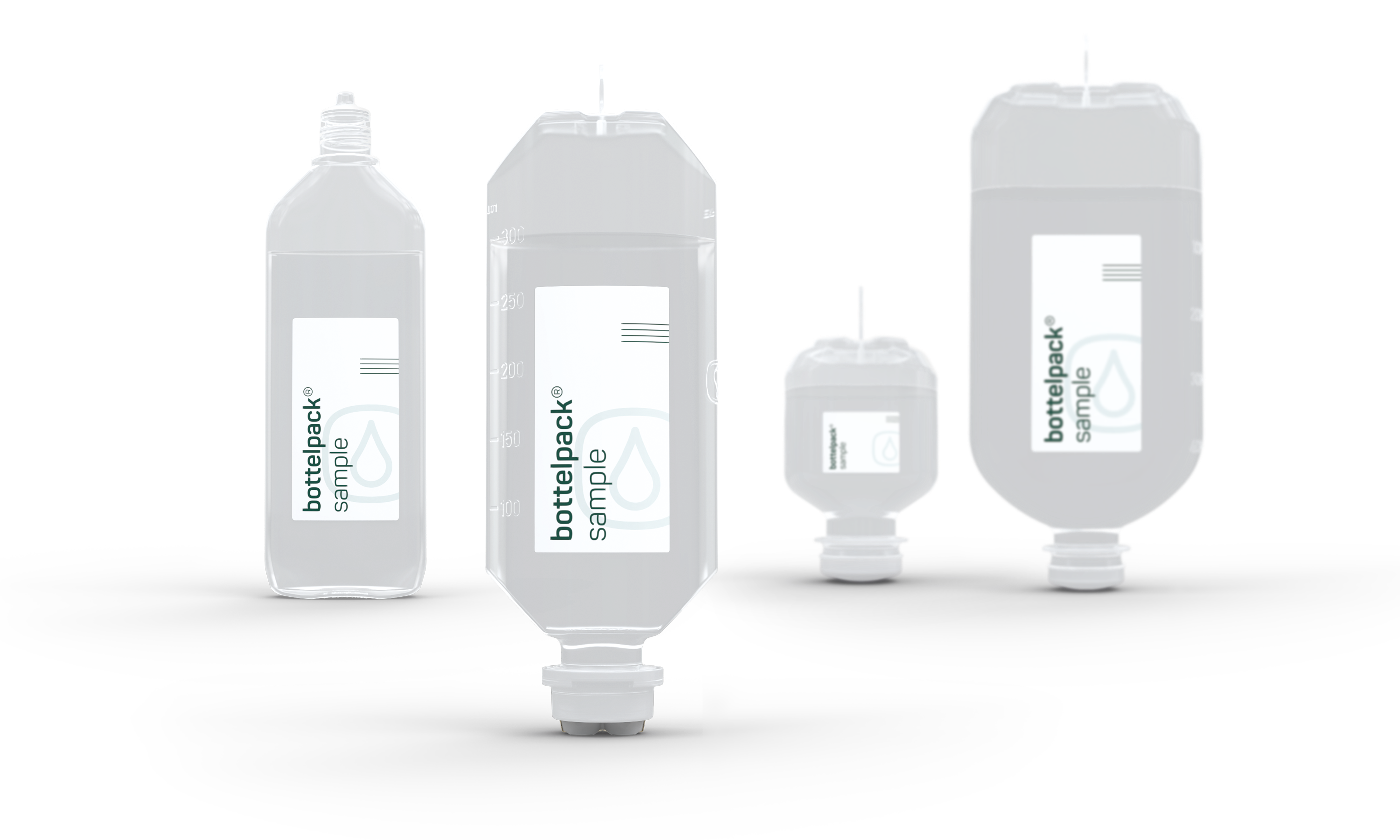

Four bottelpack bottles in three sizes

The six biggest contributors

Plus further, smaller improvements in changeover and cleaning.

Faster format change

under

2h

75% faster than on previous models

Faster nozzle cleaning

15min

instead of four hours, by one operator instead of two

Clean-in-place (CIP) and vacuum in parallel

about

−30min

per cycle

Sprayball cleaning

about

−15min

per cycle in the aseptic shower room

Lighter format trolley

about

160kg

instead of about 600 kg, with quick connectors that eliminate time-consuming coupling and decoupling

Smart format monitoring

Radio-frequency identification (RFID) monitoring prevents misconfiguration during format changes

Output and space

Designed to increase output while using space more efficiently, with key elements moved out of the classified area.

More output per hour

almost

2×

the bottles per hour of the bp 321, both at 1,000 ml

bottelpack bp 730, front section with operator panel

Smaller classified area

only

20%

of the aseptic cabinet sits in the classified area

For existing buildings

3.5m

room height

More bottles per m²

more than

40%

more bottles per m² of classified area than the bp 321, both at 1,000 ml

Quality management

Smart digital solutions help reduce manual quality effort and support clearer process control, lower human error and more consistent product quality.

Simpler validation

Good Automated Manufacturing Practice (GAMP) software category

4

instead of 5, with less validation effort and easier software updates

  • Clear step-by-step operator guidance on the HMI minimizes human error.

Resource efficiency

Design changes reduce plastic, energy and water consumption and extend component life.

Less water

about

−80%

through sprayball cleaning, saving 2,000 liters per cycle

Less energy

up to

−30%

energy consumption per bottle

Less plastic

about

25t

per year on a bp 730 through improved head mold design, even more on a bp 750

Longer cutter life

2×

lifetime of the parison cutting system through bidirectional cutting

Video and views

Explore the bp 700 Series

The animation assembles the bp 730 module by module and shows how the classified area is separated from the rest of the machine.

Data sheet

bp 700 Series data sheet

Room size
10 × 15.6 m
Classified area incl. access to aseptic cabinet
76 m²
Room height
3.5 m
Plastic
Low-density polyethylene (LDPE), polypropylene (PP)
  • Output of bp 710, bp 730 and bp 750 at 100, 250, 500 and 1,000 ml
  • Recommended cleanroom layout with classified and non-classified areas
  • Energy, compressed air, cooling water, weight and polymer

Get the data sheet

Fill in the form and we will email you the data sheet.

60+years of BFS experience
2,000+bottelpack machines installed
80+countries served
